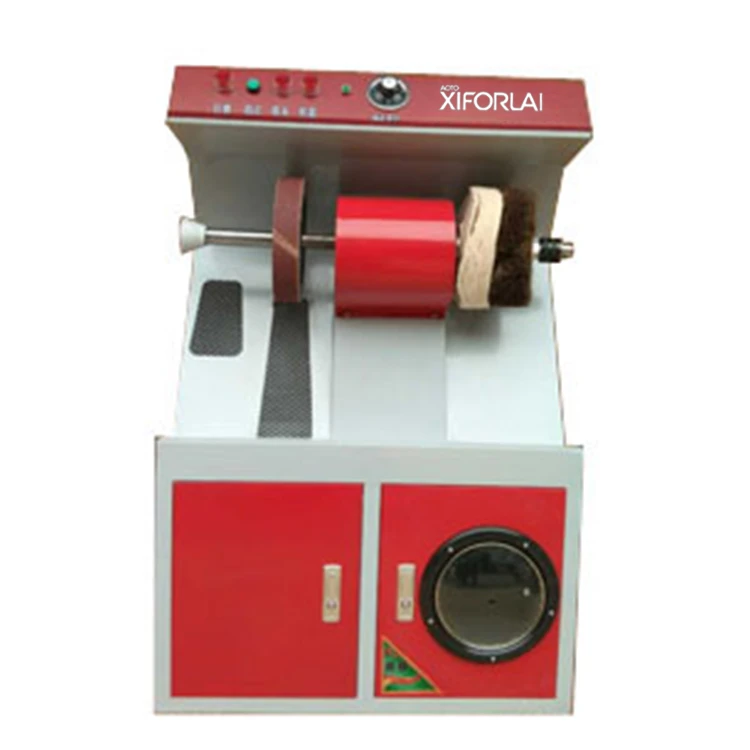

Shoe Repair Machine

Leather shoes beauty dressing machine
First: Function and features of the main parts:
1. Main switch: power main switch, and the indicator light is on after opening.
2. Temperature control: oven temperature control switch, adjustable, reach the set temperature, red light, the machine will not continue to heat. The general temperature can be set at 80-100 degrees, and should not exceed 150 degrees.
3. Grinding: two thick and fine grinding wheels, can be used at the same time. Note: (W-170 and W-460 are one grinding wheel, and the coarse and fine sand can be replaced as needed)
4. Polishing: two ponytail wheel, used for vamp, shoe edge polishing, cloth wheel hit with filling wax, used for vamp, shoe edge, play the role of filling. Note: (W-170, W-460 is one polishing wheel)
5. Dust: there is a dust suction machine on the left of the bottom of the machine, grinding machine work, suction machine can run at the same time, before use need to set on the suction bag, dust bag clean once a day, suction machine once a quarter to clean (open the back cover, the dust suction machine blade dust clean).
6. Pressure: pneumatic pressure, pressure the front palm after use, cover the appropriate aluminum plate. Note: (W-170, W-351, W-390 without compression function).
7. Sterilization: sterilization, deodorization
8. Oven: located in the lower part of the machine, red ultraviolet oven, temperature adjustable, reached the set temperature, the red light on, the machine will not continue to heat. The general temperature can be set at 80-100 degrees, and should not exceed 150 degrees.
9. Working light: the working light is on when using the machine.
10. Indicator: Turn on the main power switch
SECOND: Function: suitable for all kinds of leather shoes beauty, whole, shape, design, stick, bottom, peeling, peeling, vacuum, edge, trim, polishing, wax, wax, cleaning, deodorization bacteria, wrinkle and so on.

1. The model is beautiful and generous, top paint baking, bright appearance, keep beautiful and lasting.
2. Referring to the advanced characteristics of the international similar equipment, reasonable structure, easy to use. You can simultaneously use two thick and thin grinding wheels and the next gold steel wheel to polish the heel.
3. There are two ponytail wheels, used for upper, shoe polishing, the best effect. The cloth wheel is coated with filling wax, used for upper, shoe edge polish, filling effect.
4. Independent ultraviolet sterilization, low operation noise, complete functions, simple operation, convenient operation.

1. Please place the machine on the level and dry ground for easy operation, and install the fixed power supply with leakage protection and good grounding according to the connection mode of the purchased machine power supply.
Note: 1) For models with their own socket, 10A special socket shall be provided and installed fixed.
2) For models without their own plug, please carefully check the rated working current of the machine on the fuselage first, and then equip the corresponding air switch according to the rated current value, and install it fixed in a safe area.
2. Turn on the power supply, turn on the power supply switch, the indicator light is on, and connect the plastic pipe joint on the back of the machine to the air pump before use.

1. Main switch: Please open the machine before use.
2. Temperature control: the sole glue use, open the temperature control switch, the temperature can be controlled by itself, to reach the set temperature, the red light on the machine will not continue to heat. The general temperature can be set at 80-100 degrees, and should not exceed 150 degrees.
3. Grinding: press the start button and the round button together, and the grinding wheel begins to work, and the grinding operation can be conducted.
4. Polishing: polishing start button and the round button press together, the polishing wheel began to work, can be polishing operation.
5. Vacuuming: the grinding wheel rotates, and the ash suction machine can run at the same time. Before use, cover the ash suction bag, and the ash suction bag should be cleaned once a day.
6. Pressure: press this switch, set on the appropriate aluminum plate to press the operation.
7. Sterilization: press this key to the leather shoes sterilization, deodorization.
8. Oven: press the rear infrared oven to work.
9. Drying: only the W-700 model comes with a dryer, in the upper left of the machine, can bake three pairs of shoes each time.

1. The machine oil and water separator, the left of the automatic water, the right with the half shell oil, the thinner the better.
2. Do not smoke when the machine works, has no suction air suction fireworks.
3. There is a suction machine on the back of the machine, and the suction bag is often cleaned.
4. The gun takeover to often add the oil in the gun packaging, has ensured the cylinder lubrication.

1. In order to protect the service life of the motor, the special grinding and polishing motor of the factory is set in the upper right corner of the start switch to help start the switch (green or red circular button).
2. The correct start method is: press the start button and the round button together, hold it for about 1 second, and release the motor after the speed to complete the normal start. If the start switch is pressed separately without using the auxiliary start button, the motor runs slowly and is easy to damage the motor.
Warning: Please ground well before use. If a fault needs to be removed, the power supply should be cut off. When the live inspection is required, please contact the professional maintenance personnel.

W-170 Shoe repair machine
USD 550

W-351 Shoe repair machine
USD 950

W-470 Shoe repair machine
USD 1180

W-390 Shoe repair machine
USD 1150

W-400 Shoe repair machine
USD 1380

W-700 Shoe repair machine
USD1580
